1.2.3.2.2 Proposed CSG projects


In addition to the projects currently under construction, a number of additional CSG projects have been proposed. These are Arrow Energy’s Surat Gas Project, which has received State Government and Australian Government approval, Santos’ Gladstone LNG Gas Field Development Project, and Origin Energy’s Ironbark Project. The two latter ones are currently in the stage of preparing an EIS. The location of these projects within the Maranoa-Balonne-Condamine subregion and their potential extent is in Figure 15 which also highlights the network of gas pipelines in the subregion and the pipelines to Gladstone.

Figure 15

Figure 15 Petroleum tenures of the proposed but not approved coal seam gas developments in the Maranoa-Balonne-Condamine subregion. The petroleum tenures include both authorities to prospect and petroleum leases

Source data: DNRM (2014a), viewed 21 August 2014

GLNG GFD = Gladstone LNG Gas Field Development Project

Surat Gas Project

The Surat Gas Project (SGP) is one of five components of the proposed Arrow Energy LNG project which, at present, involves:

  • gas recovery from Arrow Energy’s CSG tenements in the Surat and Bowen basins (the Bowen Gas Project is not discussed further here as it is located outside the Maranoa-Balonne-Condamine subregion)
  • gas transmission pipelines from those basins to Curtis Island
  • an LNG plant where the gas is converted to LNG for export.

The SGP will also continue to provide gas for the domestic market (Australian Mining Link, 2013).

Under the proposed SGP, production at Arrow Energy’s existing CSG fields Stratheden, Kogan North, Daandine, and Tipton West would be expanded and other Arrow Energy tenures in the Surat Basin would be developed. The development area of the SGP covers approximately 6100 km2 and extends in an arc from Wandoan in the north, through Dalby in the east, down to the south-west of Millmerran as demonstrated in Figure 16 (Arrow Energy, 2012, 2013, 2014b). Its location and extent within the Maranoa-Balonne-Condamine subregion is shown in Figure 15 and the individual petroleum tenures containing the gas field developments are summarised in Table 13. The combined 2P reserves of the tenures of the SGP in the Maranoa-Balonne-Condamine subregion, as per Table 13, are 6872 PJ as of 31 December 2013 (DNRM, 2014d).

Table 13 Coal seam gas petroleum tenures of the Surat Gas Project in the Maranoa-Balonne-Condamine subregion


Tenure

Block

Status

2P Reserves

(PJ)

Notes

PLA 185

Darvall/Dundee

Appraisal

97

PL application over part of ATP 676

PL 194

Kogan North

Operating

364

PL 198

Tipton West

Operating

691

PL 230

Daandine

Operating

293

PL 238

Plainview

Appraisal

617

PL 252

Stratheden

Operating

285

PLA 253

Hopelands

Appraisal

472

PL application over part of ATP 676

PL 258

Meenawarra

Appraisal

359

PL 260

Longswamp

Development

540

PLA 304

Kedron

Appraisal

169

PL application over part of ATP 810

PLA 305

Castledean

Appraisal

124

PL application over part of ATP 810

PLA 491

Yeronga

Appraisal

NA

PL application over part of ATP 747

PLA 492

Alderley

Appraisal

NA

PL application over part of ATP 747

PLA 493

Wyalla

Appraisal

NA

PL application over part of ATP 676

PLA 494

Guluguba

Appraisal

NA

PL application over part of ATP 747

ATP 676

NA

Appraisal

79

ATP 676 KN

Kogan North

Exploration

60

ATP 683

Bowenville

Appraisal

1029

ATP 683

Dalby South

Appraisal

370

ATP 683

Millmerran

Appraisal

165

ATP 746

NA

Exploration

14

only part of ATP intended for SGP

ATP 747

NA

Exploration

932

only part of ATP intended for SGP

ATP 810

NA

Appraisal

212

only part of ATP intended for SGP

2P = proved plus probable reserves, ATP = authority to prospect, PL = petroleum lease, PLA = petroleum lease application

The 2P reserves are as of December 2013 (DNRM, 2014d). NA means ‘data not available’; SGP = Surat Gas Project

Eleven drainage areas (which are in Figure 16) were identified by Arrow Energy for staggered development as part of the SGP (Arrow Energy, 2012). Currently eight of these areas are planned to be developed. Development of the remaining three areas will depend on exploration outcomes and future LNG and gas market conditions (Arrow Energy, 2012). To optimise production over the life of the project, development of the resources will be staged and will be concurrent in several areas as Arrow Energy incrementally expands its current operations and develops new gas fields (Arrow Energy, 2012). The areas to be developed first are in Dalby (DA7), Miles (DA2), Wandoan (D1), and Chinchilla (DA5) (Arrow Energy, 2013) as shown in Figure 16.

Figure 16

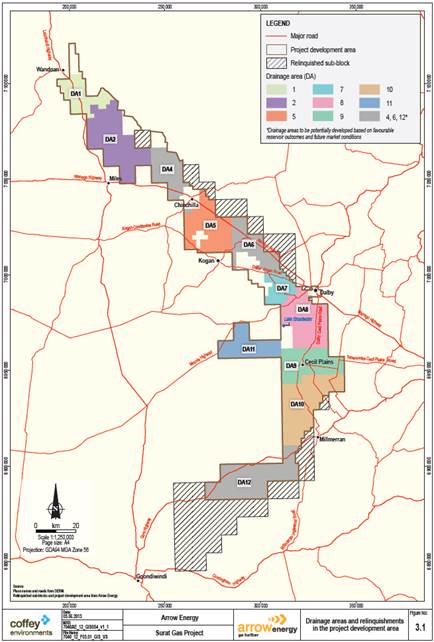

Figure 16 The eleven development areas of Arrow's Surat Gas Project in the Maranoa-Balonne-Condamine subregion. The relinquished blocks highlighted in black diagonal stripes were included in the initial Surat Gas Project proposal but have since been relinquished based on improved knowledge of CSG reserves through exploration

Source: Figure 2-1 in Alluvium (2013). This figure is not covered by a Creative Commons Attribution licence. It has been reproduced with the permission of Arrow Energy.

A maximum of 6500 wells are to be drilled throughout the project life (Department of the Environment, 2013a). The wells will include vertical and deviated wells which apply directional drilling technology (Arrow Energy, 2013). Hydraulic fracturing has been prohibited as a condition of project approval (Department of the Environment, 2013a). The deviated wells enable larger contact areas between the well and the CSG reservoir and thus enable higher flow rates. The deviated wells also allow multiple wells to be at the same central surface location (multi-well pad). The maximum number of production wells for one multi-well pad is 12, but 9 wells will be typical. Arrow Energy estimates that approximately 30% of the wells drilled will be single vertical wells, while 70% will be deviated wells arranged in multi-well pads. Arrow Energy has committed to a minimum mean well spacing of at least 800 m and aims to be flexible with the siting of well pads, targeting areas that will have minimum impact on land use (Arrow Energy, 2013). Drilling will occur up to a depth of 800 m and production will typically occur from coals between 300 and 750 m depth (Arrow Energy, 2013). The target coals for CSG extraction are those of the Walloon Coal Measures.

Sustained gas production is forecast as 1215 TJ/day, with 80 TJ/day continuing to be used for the domestic gas market and 1135 TJ/day intended for the export market in the form of LNG (Arrow Energy, 2013). Gas production infrastructure will be located throughout the project development area and is predicted to include eight central gas processing facilities (each with a production capacity between 75 and 225 TJ/day). Ramp-up to peak production is estimated to take between four and five years (Arrow Energy, 2012). The ramp-up period is defined as the time from first gas production to sustained production of the targeted gas rate of 1215 TJ/day. More than 1500 wells are estimated to be required in the first five years to achieve this (Arrow Energy, 2012). Strategies considered by Arrow Energy for managing the ramp-up gas include supply of the gas to Arrow Energy’s existing power stations, sale on the gas spot market, management through increased well spacing and selective timing of wells coming online, and gas flaring (as a last resort measure) (Arrow Energy, 2012). Production is expected to be sustainable for about nine years before gas rates start to decline. During those nine years new wells will continue to be drilled at an average rate of 400 per year (Arrow Energy, 2013) to maintain the required production when the initial wells start to decline and are eventually phased out and replaced. Total well life is estimated between 15 and 20 years (Arrow Energy, 2012). The project is estimated to have a lifetime of 35 years.

The SGP received environmental approval from the Queensland Government in October 2013 and from the Australian Government in December 2013. A decision to proceed with the SGP and the timing of that decision are matters of Arrow Energy’s shareholders Royal Dutch Shell plc and PetroChina Company Limited. Arrow Energy is looking at multiple opportunities, including collaboration with one or more of the existing LNG projects, to develop its gas resource (Arrow Energy, 2014, pers. comm.).

Gladstone Liquefied Natural Gas Gas Field Development Project

As part of the GLNG Project, Santos GLNG is currently planning the GLNG Gas Field Development Project (GLNG GFD Project). The project is a continuation of the GLNG Project and aims to secure gas supply for the next 30 years through drilling of approximately 6100 production wells within the existing approved areas and new surrounding tenures (Santos, 2013d). The EIS is currently being prepared (Queensland Government DSDIP, 2013). The project would involve further development of CSG reserves within the already approved development area of the GLNG Project (Roma within the Maranoa-Balonne-Condamine subregion, as well as Fairview and Arcadia outside the Maranoa-Balonne-Condamine subregion), as well as the development of additional petroleum tenures within the area highlighted as future development area in Figure 12 (Santos, 2012). The tenures located within the Maranoa-Balonne-Condamine subregion around Roma to be included in the GLNG GFD Project are in Figure 15. The individual tenures containing the GLNG GFD Project in the Maranoa-Balonne-Condamine subregion are in Table 11 (Santos, 2012). These are tenures that were already approved for the GLNG Project as well as additional tenures proposed for new CSG development. The project is estimated to run over 30 years and is planned to commence in 2016 (Santos, 2013d). The specific well locations, well numbers, and timing at Roma will be determined by ongoing exploration and appraisal activities. The combined 2P reserves of the GLNG GFD Project at Roma are 2807 PJ as of December 2013 (DNRM, 2014d) which include the 2P reserves of the approved GLNG Project (2745 PJ) (compare Table 8 and Table 11).

Table 14 Petroleum tenures of the GLNG Gas Field Development Project around Roma in the Maranoa-Balonne-Condamine subregion


Tenure

Block

Status

2P Reserves

(PJ)

Notes

PL 3

Timbury/Beaufort

Appraisal

43

Approved for GLNG Project

PL 6

Pringle D/Hope Ck

Exploration

NA

Approved for GLNG Project

PL 7

Richmond/Blyth

Appraisal

4

Approved for GLNG Project

PL 8

Wallumbilla South

Appraisal

341

Approved for GLNG Project

PL 9

Maffra/Anabranch

Exploration

NA

Approved for GLNG Project

PL 322

Grafton R/Mooga

Appraisal

130

Approved for GLNG Project

PL 93

Stakeyard

Appraisal/Development

13

Approved for GLNG Project

PL 309

Hermitage/Coxon Ck

Development

208

Approved for GLNG Project

PL 310

Raslie North

Development

430

Approved for GLNG Project

PL 314

Pine R/Pleasant H

Development

247

Approved for GLNG Project

PL 315

Raslie/Yanalah

Development

426

Approved for GLNG Project

ATP 336 R

Roma

Appraisal/Exploration

NA

Approved for GLNG Project

ATP 631 R

NA

Exploration

903

Approved for GLNG Project

PL 10

Bony Ck/Tarrawonga

Exploration

NA

Proposed future development

PL 11

Back Ck/Snake Ck

Appraisal

62

Proposed future development

ATP 665

NA

Exploration

NA

Proposed future development

ATP 708

NA

Appraisal/Exploration

NA

Proposed future development

Source data: Santos (2012)

2P = proved plus probable reserves, ATP = authority to prospect, PL = petroleum lease, PLA = petroleum lease application

The 2P reserves are as of December 2013 (DNRM, 2014d). NA means ‘data not available’

Ironbark Project

Origin Energy’s proposed Ironbark Project is in ATP 788 between the towns of Tara in the south, Dalby to the east, and Chinchilla to the north. Its position within the Maranoa-Balonne-Condamine subregion is indicated in Figure 15. The tenure is within the Undulla Nose region in the Walloon Fairway, adjacent to existing Origin Energy and QGC CSG developments, and covers an area of 64,140 ha (Origin Energy, 2011b). The 2P reserves were 259 PJ as of 30 June 2014 (Origin Energy, 2014b).

As part of exploration and appraisal activities, Origin Energy operates a small number of pilot CSG wells, appraisal wells, and monitoring wells at the Ironbark tenement. These have been drilled to evaluate the Ironbark gas resources ahead of planned possible development. The Duke 2 pilot and the Duke 3 pilot have five operating wells each and have been in operation since July 2012 and May 2013 respectively. Six wells have been drilled as part of a third production pilot, Duke 7, but the wells have not yet been completed (Origin Energy, 2014, pers. comm.).

An EIS for the Ironbark Project is in preparation (as of August 2014). Should the project gain approval, produced gas would be processed in a new gas plant and supplied to the Darling Downs Pipeline (DDPL) for sale to the domestic market (Origin Energy, 2011b).
