The Methodology for bioregional assessments of the impacts of coal seam gas and coal mining development on water resources (the BA methodology) (Barrett et al., 2013) states:
The central purpose of BAs is to analyse the impacts and risks associated with changes to water-dependent assets that arise in response to current and future pathways of CSG and coal mining development.
The impact and risk analysis for the Hunter subregion (Component 3 and Component 4) follows the overarching logic described in companion submethodology M10 (as listed in Table 1) for analysing impacts and risks (Henderson et al., 2018), and is summarised diagrammatically in Figure 6. It builds on, and is only possible because of, the contextual information (Component 1) and knowledge from the conceptual models of causal pathways, numerical groundwater and surface water modelling, and data analysis (Component 2). These components are described in detail in preceding products for the Hunter subregion. The impact and risk analysis represents the culmination of effort to improve the knowledge base around coal resource development, and to understand how water resources and water-dependent assets may be affected by hydrological changes due to additional coal resource development in the Hunter subregion.
The impact analysis quantifies the magnitude and extent of the potential hydrological and ecosystem changes due to additional coal resource development. It includes:
- direct impacts: changes in water resources and water-dependent assets resulting from coal seam gas (CSG) and coal mining developments without intervening agents or pathways
- indirect impacts: changes in water resources and water-dependent assets resulting from CSG and coal mining developments with one or more intervening agents or pathways
- cumulative impacts: the total change in water resources and water-dependent assets resulting from CSG and coal mining developments when all past, present and reasonably foreseeable actions that are likely to impact on water resources are considered.
The risk analysis is related, but considers not only the magnitude and extent of a potential impact but also the likelihood of that impact. This is often framed as ‘consequence multiplied by the likelihood’. The quantification of the likelihood is underpinned by an uncertainty analysis that allows probabilistic statements about events or impacts occurring. Within BAs, the uncertainty analysis stochastically propagates uncertainties in underlying hydrological parameters through hydrological models to produce distributions of potential surface water and groundwater changes. These in turn can be used as input to receptor impact models to produce distributions of receptor impact variables, which are chosen as indicators of potential changes in ecosystems.

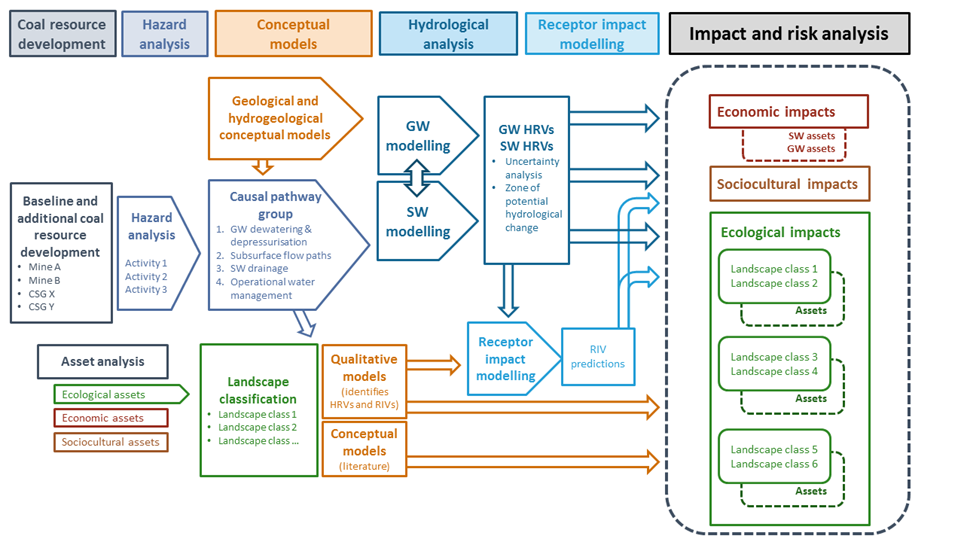

Figure 6 Overarching methodology for impact and risk analysis in bioregional assessments
CSG = coal seam gas, GW = groundwater, HRV = hydrological response variable, RIV = receptor impact variable, SW = surface water
BAs identify risks through a hazard analysis and analyse those risks by estimating the magnitude and likelihood of specific impacts. The risk assessment, risk evaluation and risk treatment that occur as part of the broader risk management (see, for example, ISO 31000:2009 Risk Management Standards) are beyond the scope of BAs because they require careful consideration of a number of non‐scientific matters and value judgements; these are roles of proponents and government regulators in the first instance, often in response to specific community values.
This product describes the hydrological changes, and then the potential impacts of those changes on landscape classes and water-dependent assets, which contain ecological, economic and sociocultural values. These regional-scale results do not replace the need for detailed site- or project-specific studies, nor should they be used to pre-empt the results of detailed studies that may be required under NSW legislation. Where potentially significant impacts are identified from the regional-scale analysis, local-scale information can be used to better define the risk. This is illustrated for an area within the Hunter subregion where the regional-scale analysis indicated large changes in hydrology, with potentially significant impacts on landscape classes and water-dependent assets.
BAs present the likelihood of certain impacts occurring, for example, the percent chance of exceeding 0.2 m of drawdown in a particular aquifer and location (see Section 3.2.3). The underpinning data and information are available at www.bioregionalassessments.gov.au for others to access and use in their own targeted risk assessments. Users can choose thresholds of impact that may threaten the specific values they are trying to protect and calculate the corresponding likelihood of occurrence. More details about hydrological changes and potential impacts in the Hunter subregion are available at www.bioregionalassessments.gov.au/explorer/HUN.
