2.7.5.4.1 Percent foliage cover
Elicitation scenarios
Table 26 summarises the elicitation design matrix for the percent foliage cover of trees in the ‘Floodplain, terrestrial GDE’ landscape group. The first design point (design point identifier 1) set the variability in percent foliage cover under the reference conditions (no drawdown).
The remaining design points represent hydrological scenarios that span the uncertainty in the values of the hydrological response variables in the relevant time period of hydrological history associated with the shortassessment (2013 to 2042) and longassessment (2073 to 2102) periods.
Design point identifiers 3 through to 33 (as listed in Table 26) represent combinations of the two hydrological response variables (dmaxRef, EventsR2.0, Table 25), together with high and low values of Yref. The high and low values for Yref were calculated during the receptor impact modelling workshop following the experts’ response to the first design point, and then automatically included within the design for the elicitations at the subsequent design points.
Table 26 Elicitation design matrix for receptor impact model of percent foliage cover in ‘Floodplain, terrestrial GDE’ landscape group
Design point identifier
dmaxRef
EventsR2.0
Yref
Year

1
0
0.50
na
2012
13
0.2
0.85
0.2
2042
17
2.8
1.65
0.2
2042
9
10
1.65
0.075
2042
3
10
0.05
0.075
2042
23
2.8
0.85
0.075
2102
33
10
0.85
0.2
2102
25
0.2
1.65
0.075
2102
28
0.2
0.05
0.2
2102
Design points for Yref in the future (short and longassessment periods) are calculated during the receptor impact modelling elicitation workshop using elicited values for the receptor impact variable in the reference period. All other design points (with identifiers) are either default values or values determined by groundwater and surface water modelling. dmaxRef and EventsR2.0 are as in Table 25. na = not applicable, GDE = groundwaterdependent ecosystem
Data: Bioregional Assessment Programme (Dataset 4)
Receptor impact model
The model fitted to the elicited values of mean percent foliage cover takes the form

(3)
where is an intercept term (a vector of ones), is a binary indicator variable scored 1 for the case of an assessment in the short or longassessment year, is a binary indicator variable scored 1 for the case of an assessment in the longassessment year, is a continuous variable that represents the value of the receptor impact variable in the reference year (Yref, set to zero for the case of an assessment in the reference year), and are the (continuous or integer) values of the two hydrological response variables (dmaxRef, EventsR2.0). Note that the modelling framework provides for more complex models, including the quadratic value of, and interactions between, the hydrological response variables but in this instance the simple linear model above was identified as the most parsimonious representation of the experts’ responses.

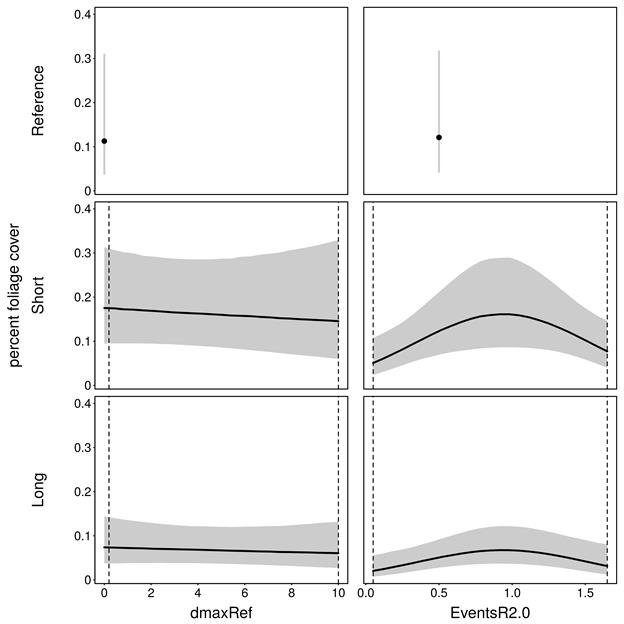

The (marginal) mean and 80% central credible intervals of the two hydrological response variable coefficients are summarised in the partial regression plot in Figure 31, while Table 27 summarises the same information for all six model coefficients.
In the middle and bottom rows, all other hydrological response variables are held constant at the midpoint of their elicitation range (during the risk estimation process all hydrological response variables vary simultaneously). The dashed vertical lines show range of hydrological response variables used in the elicitation workshop. Reference = period from 1983 to 2012, Short = assessment period 2013 to 2042, Long = assessment period 2073 to 2102. dmaxRef and EventsR2.0 are as in Table 25. The numbers on the yaxis range from 0 to 1 as the receptor impact model was constructed using the proportion for the statistical modelling. They should be interpreted as a percent foliage cover ranging from 0 to 100%.
Data: Bioregional Assessment Programme (Dataset 4)
The model indicates that the experts’ opinion provides evidence for dmaxRef having a very small negative effect on average percent foliage cover. This suggests that percent foliage cover may decrease as groundwater drawdown increases due to coal resource development. The model predicts that (holding all other hydrological response variables constant at the midpoint of their elicitation range) the mean of the average percent foliage cover will drop from approximately 10% without any change in groundwater level, to about 7% if the levels decrease by 6 m relative to the reference level in 2012. There is, however, considerable uncertainty in these predictions, with an 80% chance that the foliage cover will lie somewhere between approximately 24% and less than 1% on the shortassessment period, and somewhere between roughly 17% and less than 1% in the longassessment period, with a 6 m drop in groundwater level.
Table 27 Mean, 10th and 90th percentile of the coefficients of the receptor impact model for percent foliage cover in the ‘Floodplain, terrestrial GDE’ landscape group

Mean
q10
q90

(Intercept)
–3.08
–4.4
–1.76
future1
0.0937
–1.12
1.3
long1
–0.923
–1.72
–0.131
dmaxRef
–0.0205
–0.112
0.0715
EventsR2.0
2.89
0.575
5.21
I(EventsR2.0^{2})
–1.54
–2.8
–0.291
Future is a binary variable scored 1 if the analysis case is in a short or longassessment period. Long is a binary variable scored 1 if the analysis case is in the assessment year. dmaxRef and EventsR2.0 are as in Table 25. GDE = groundwaterdependent ecosystem
Data: Bioregional Assessment Programme (Dataset 4)
The fitted model suggests that there is evidence in the experts’ responses for EventsR2.0 having a major quadratic effect on percent foliage cover. The 80% credible interval for this hydrological response variable’s coefficient lies wholly within the positive or negative parts of the real line (Table 27). If all other hydrological response variables are held at the midpoint of their elicitation range, the model suggests that the frequency of overbank flows will have a positive effect on average percent foliage cover unless that frequency becomes too high – the predicted increase in the average frequency of overbank flood events, from 0.05 in the 30 years preceding the reference year, to an average value of 0.9 over the future period, causes the average percent foliage cover to increase by almost 10%. However, large values of EventsR2.0 (above 1) will have a negative effect on percent foliage cover.
The summary statistics for the marginal distribution of the model coefficients (Table 27) for the two remaining model coefficients (future1 and long1) indicate that there is insufficient information in the expertelicited data to determine the effect of the future coefficient, whereas the long coefficient is identified as having a negative effect.
